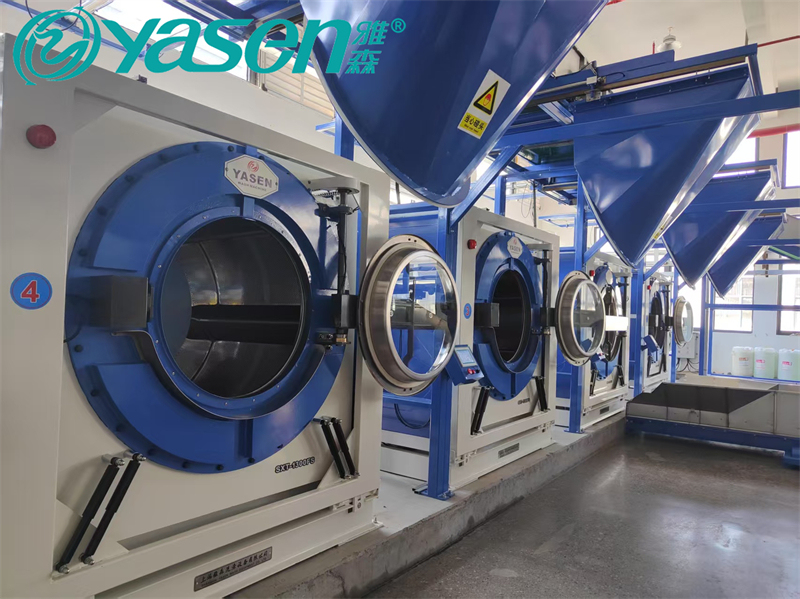

The Hospital Washer Extractor integrated with two-way tilting function (also referred to as Hospital Two Way Tilting Washer Extractor) is a specialized industrial laundry equipment engineered for medical textile processing. It combines three core capabilities—high-efficiency washing, high-speed extraction, and bidirectional drum tilting—to meet the strict hygiene, efficiency, and fabric protection requirements of healthcare facilities.
Technical Parameter | Unit | SXT-1300FS | SXT-1500FS |
---|---|---|---|
Rated Capacity | kg | 130 | 130 |
Front Tilt Angle | ° (Degree) | 25° | 21° |
Rear Tilt Angle | ° (Degree) | 25° | 26° |
Cylinder Diameter | mm | 1300 | 1470 |
Cylinder Depth | mm | 980 | 880 |
Washing Speed | rpm | 35 (Variable) | 32 (Variable) |
High-Speed Extraction Speed | rpm | 650 (Variable) | 610 (Variable) |
Power Supply | V/Ph/Hz | 380/3/50 | 380/3/50 |
Main Motor Power | kW | 11 | 15 |
Heating Method | Steam | Steam | |
Steam Pipe Diameter | inch | G1″ | G1.5″ |
Steam Pressure | MPa | 0.4-0.6 | 0.4-0.6 |
Cold/Hot Water Pipe Diameter | inch | G2″ | G2″ |
Cold/Hot Water Pressure | MPa | 0.3-0.5 | 0.3-0.5 |
Drain Outlet Diameter | mm | Φ127*2 | Φ140*2 |
Compressed Air Pressure | MPa | 0.6-0.8 | 0.6-0.8 |
Noise Level | dB(A) | ≤75 | ≤75 |
Net Weight | kg | 4500 | 6800 |
Overall Dimensions (W*D*H) | mm | 2070*2400*2085 | 2520*2380*2612 |
A: The Hospital Tilting Washing Machine’s bidirectional tilting (0°–35° adjustable angle) optimizes textile-solution contact. Forward tilting enhances friction between heavy textiles (e.g., thick patient blankets) and detergent, boosting stain removal (e.g., body fluid residues) by 20%–25%. Backward tilting reduces fabric tangling for delicate items (e.g., surgical drapes), ensuring uniform cleaning without fiber damage.
A: Yes. It integrates high-temperature washing (60–95℃) and optional ozone disinfection, which eliminates 99.9% of pathogenic microorganisms (e.g., bacteria, viruses) per ISO 15883. The 316L stainless steel drum resists corrosion from medical disinfectants, preventing cross-contamination—critical for processing soiled medical textiles like used surgical gowns.
A: After high-speed extraction (1000–1200 RPM) to reduce moisture, the Tilting Washing Machine tilts forward (15°–20°) for automatic discharge. This cuts manual handling time by 30%–40%, avoids contact with wet, disinfected textiles, and streamlines transfer to dryers—supporting fast turnover of medical linens (e.g., patient bed sheets) in busy hospitals.
A: Absolutely. It features programmable tilting speed and temperature controls. For special fabrics, the machine uses low-tension backward tilting (30℃ wash temperature) and gentle extraction, which removes stains (e.g., dust, light soiling) without damaging protective coatings (e.g., lead layers in radiation gear), preserving their functional performance.
Yasen IWS Washing System is an integrated washing system based on automated single machines. It offers high extent of customization washing solution for the clients, which brings a comprehensive input-sorting-washing-drying-output solution.
Compared with tunnel washing equipment, Yasen IWS system is more flexible to configure, clients are allowed to select the particular quantity of washing or drying machines according to their actual washing needs. Clients are also allowed to upgrade the system with more machines in the future, in order to meet the increasing quantity of washing orders.
The structure is strengthened for the constant washing tasks, the airbag is optimized for 350G extracting power. The system also may connected with other processing equipment such as folders, ironers to save the time and the cost, then lower the energy consumption.
Yasen IWS system have strong mechanical maintenance convenience, which will keeps high running efficiency when one or more washer/dryer need maintenance.
When a certain machine need maintenance, users just need to push the machine out of the system and carry out maintenance independently while the whole system running is almost not effected when compared with tunnel washing equipment.
