起源の場所:
中国上海
ブランド名:
YASEN
証明:
CE,ISO9001:2008
モデル番号:
IWS
The fully automatic industrial washer extractor is engineered for high-volume laundry operations with a 130 kg capacity per cycle. This microprocessor-controlled system features programmable logic for automated washing, rinsing, and extraction processes. Constructed with corrosion-resistant stainless steel components, the machine incorporates a balanced suspension system and variable frequency drive for stable operation during high-G-force extraction. The unit supports integration with building management systems and can be configured for steam or electric heating applications. This equipment is suitable for commercial laundry facilities requiring reliable processing of large textile volumes with minimal operator intervention.
| Technical Parameter | Unit | SXT-1300FS | SXT-1500FS |
|---|---|---|---|
| Rated Capacity | kg | 130 | 130 |
| Front Tilt Angle | ° (Degree) | 25° | 21° |
| Rear Tilt Angle | ° (Degree) | 25° | 26° |
| Cylinder Diameter | mm | 1300 | 1470 |
| Cylinder Depth | mm | 980 | 880 |
| Washing Speed | rpm | 35 (Variable) | 32 (Variable) |
| High-Speed Extraction Speed | rpm | 650 (Variable) | 610 (Variable) |
| Power Supply | V/Ph/Hz | 380/3/50 | 380/3/50 |
| Main Motor Power | kW | 11 | 15 |
| Heating Method | Steam | Steam | |
| Steam Pipe Diameter | inch | G1″ | G1.5″ |
| Steam Pressure | MPa | 0.4-0.6 | 0.4-0.6 |
| Cold/Hot Water Pipe Diameter | inch | G2″ | G2″ |
| Cold/Hot Water Pressure | MPa | 0.3-0.5 | 0.3-0.5 |
| Drain Outlet Diameter | mm | Φ127*2 | Φ140*2 |
| Compressed Air Pressure | MPa | 0.6-0.8 | 0.6-0.8 |
| Noise Level | dB(A) | ≤75 | ≤75 |
| Net Weight | kg | 4500 | 6800 |
| Overall Dimensions (W*D*H) | mm | 2070*2400*2085 | 2520*2380*2612 |

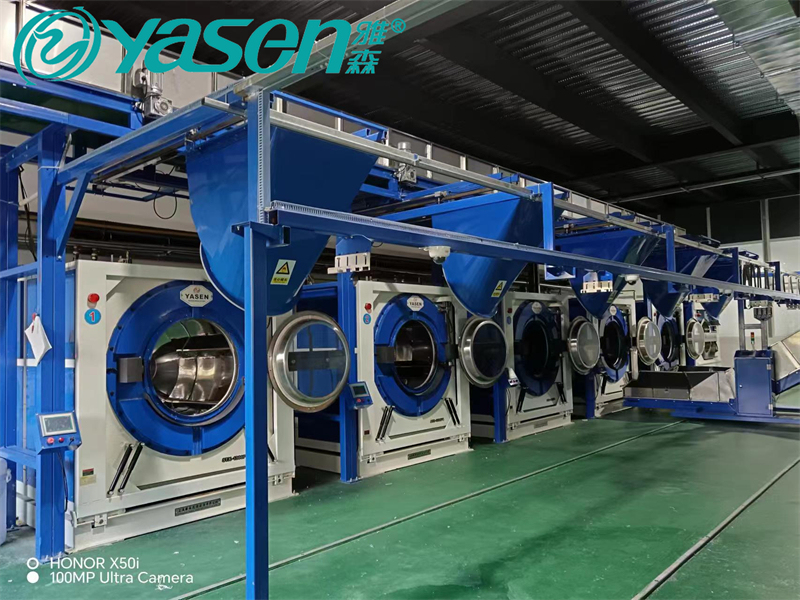

Yasen IWS Washing System is an integrated washing system based on automated single machines. It offers high extent of customization washing solution for the clients, which brings a comprehensive input-sorting-washing-drying-output solution.
Compared with tunnel washing equipment, Yasen IWS system is more flexible to configure, clients are allowed to select the particular quantity of washing or drying machines according to their actual washing needs. Clients are also allowed to upgrade the system with more machines in the future, in order to meet the increasing quantity of washing orders.
The structure is strengthened for the constant washing tasks, the airbag is optimized for 350G extracting power. The system also may connected with other processing equipment such as folders, ironers to save the time and the cost, then lower the energy consumption.
Yasen IWS system have strong mechanical maintenance convenience, which will keeps high running efficiency when one or more washer/dryer need maintenance.
When a certain machine need maintenance, users just need to push the machine out of the system and carry out maintenance independently while the whole system running is almost not effected when compared with tunnel washing equipment.
問い合わせを直接私たちに送ってください.
